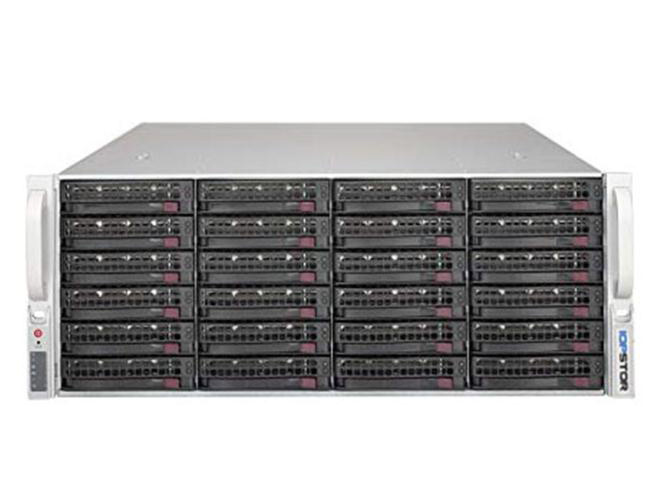

IOPStor IOP244B1G
IOPStor: Storage Made Easy
- Data Scrubbing
- Unlimited Snapshots
- Data Replication
- iSCSI and Thin Provisioning
- Enterprise GUI
Application data, virtual images, client files, email, the types of data central to running a successful business can seem endless. With IOPStor® you finally have an advanced and easy-to use solution for centralizing, securing and controlling access to your digital assets. Way more than just simple unified (NAS and SAN) storage for your company, IOPStor allows you to do more than you ever thought you could afford by pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning etc.
Designed specifically for the unique needs of SMB & Enterprise, devices are virtualization-ready with iSCSI and NFS support, thin provisioning capability and compatibility with VMware®, Citrix® Microsoft®, Proxmox VE, oVirt, etc. These days, your data is your world. With IOPStor, protecting and accessing that world has never been easier. IOPStor — Storage Made EASY.
IOPStor storage arrays are unique convergence of hardware, software, and storage expertise offering enterprise reliability and performance at a value unheard in storage. Unify your business, critical applications with IOPStor array that fix the performance and capacity requirement of your applications. IOPStor unifies block and file storage, can grow to Peta bytes in a rack and is available in hybrid as well as all flash configurations.
Zettabyte File System
ZFS is a revolutionary file system and logical volume manager that fundamentally changes the way file systems are administered, with features and benefits not found in any other file system available today. ZFS is robust, scalable, and easy to administer.
128 Bit File System
16 Billion Billion times that of 64 Bit File System ie. A HUGE Capacity.
Read / Write Cache using a combination of RAM / SSD / NVME
Frequent reads are stored in Cache making data retrieval very fast. Data is first written to cache & then to Drive removing latency in writes.
Snapshots & Clones
Snapshot Policy recovers deleted or corrupt data & Protects against Ramsomeware.
Replication
Replicate data off site or on site for data protection
Hot Data Movement
Move older un-used data from SSD storage pool to Archival Pool.
End to end Data Integrity
Data is Checksumed for integrity
RaidZ
Unlike Hardware Raid, RaidZ has NO Black Hole. There is no data loss what so ever. Raid Build time is Instantaneous. Incase of Drive Failure rebuild of pool does not affect work in any way.
Hardware Agnostic
No getting tied down to any particular hardware vendor. Free to replace component form any vendor.
Deduplication
Automatically stores only a single version of a file & not multiple copies.
Compression
Fast Data Compression with NO IMPACT on performance. Increases storage capacity.
File Server
Unified storage platform for sharing files between Windows, Mac and Linux-based computers
Virtualization
Thin provisioning, iSCSI support and certified with VMware and Microsoft
iSCSI and Thin Provisioning
Powerful tools for a business’s taking advantage of virtual infrastructures
Enterprise GUI
SW RAID redundancy with automatic expansion and unlimited data snapshots for point-in-time restore
| CPU | Intel Xeon 6core 1.7GHz |
| Memory | 32GB*1 DDR4 ECC |
| Drive Bays | 24 bay |
| Drive Types Supported | 3.5” or 2.5” |
| Hot Swappable Drives | Yes |
| Max Raw Internal Capacity (Based on 14TB drives): | 336TB |
| Gigabit LAN Ports | 1G * 2 |
| Power Supply | 1000 Watts Platinum 95% |
| Fan (mm) | 3 * 80 |
| Dimensions D*W*H (mm) | 660x 437 x 178 |
| Weight (kg) | 34.02 |
| Warranty | 3 years |
Data Protection (Backup & Replication)
• Unlimited block-based snapshots for continuous data protection
• Restore Snapshots to any point in time
• Restore Snapshot data from local admin GUI
• Scheduled and manual snapshots
• File Synchronization (rsync)
• Remote Replication
• RAID Levels: RAID Z, RAID Z1, RAID Z2, mirror, stripe, mirror + stripe equivalent to0, 1, 5, 6, 10, others (RAID level support depends on number of drives/bays)
• RAID Global Hot Spare
Storage Area Networks (SAN),
Virtualization
• Unlimited iSCSI LUN Snapshot
• Thin or thick provision LUNs
• Multi-LUN per target
• LUN mapping
• LUN masking
• SPC-3 Persistent Reservation (iSCSI)
• MPIO (iSCSI)
File System & Transfer Protocols
• External File System: EXT3, EXT4, NTFS, FAT32, HFS+
• Copy-on-write file system
• Microsoft Network (CIFS/SMB)
• Apple OS X (AFP 3.3)
• Linux/Unix (NFS v3)
• Internet (HTTP)
• Secure Internet (HTTPS)
• File Transfer Protocol (FTP)
• Secure Shell (SSH)
• Web Authoring (WebDAV)
• Storage Array Network (iSCSI)
• File Synchronization (rsync)
• Local web file manager
Users/Groups
• Share Folder Level ACL Support
• Advanced Folder Permissions with Subfolder ACL support for CIFS/SMB, AFP, FTP
• Microsoft Active Directory (AD) Domain Controller Authentication
• Local access list
Management
• Save and restore system configuration (clone devices)
• Local event log
• Thin provision Shares and LUNs
• Instant Provisioning/Expansion with data protection
• Restore to factory default
• Operating Systems supported: Microsoft Windows 7, 8/8.1, 10, Microsoft Windows Server 2008 R2/2012, Apple OS X, Linux/ Unix, Solaris, Apple iOS, Google Android
• Supported Web Browsers (Microsoft Internet Explorer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+)
System Monitoring
• Device capacity, performance, resource and health monitoring
• Bad block scan
• Hard Drive S.M.A.R.T.
• File System Check
• Disk Scrubbing
• Volume balance
• Alerts (SMTP email)
